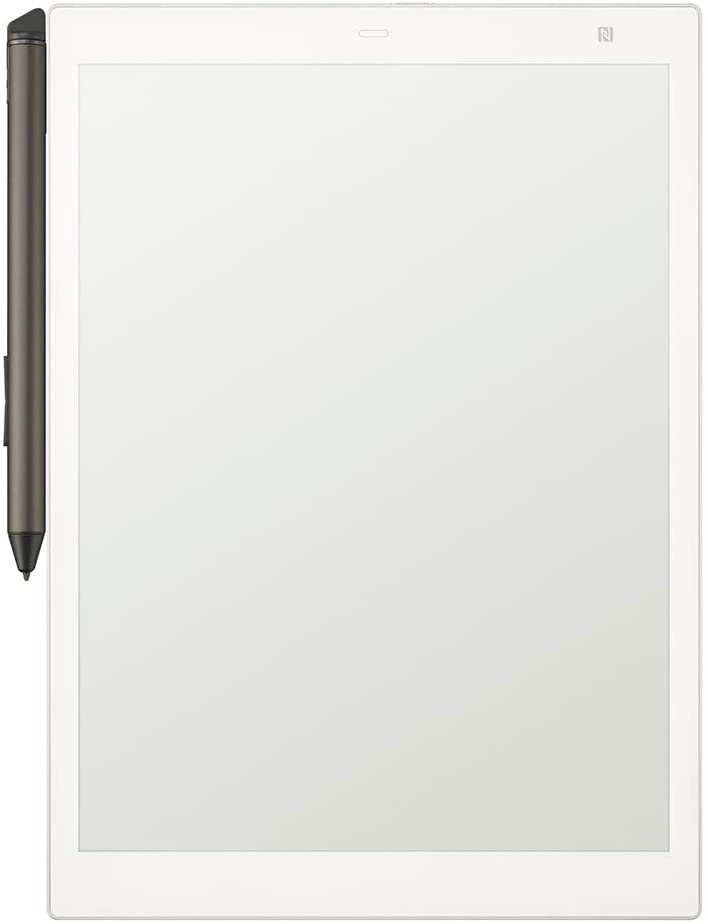

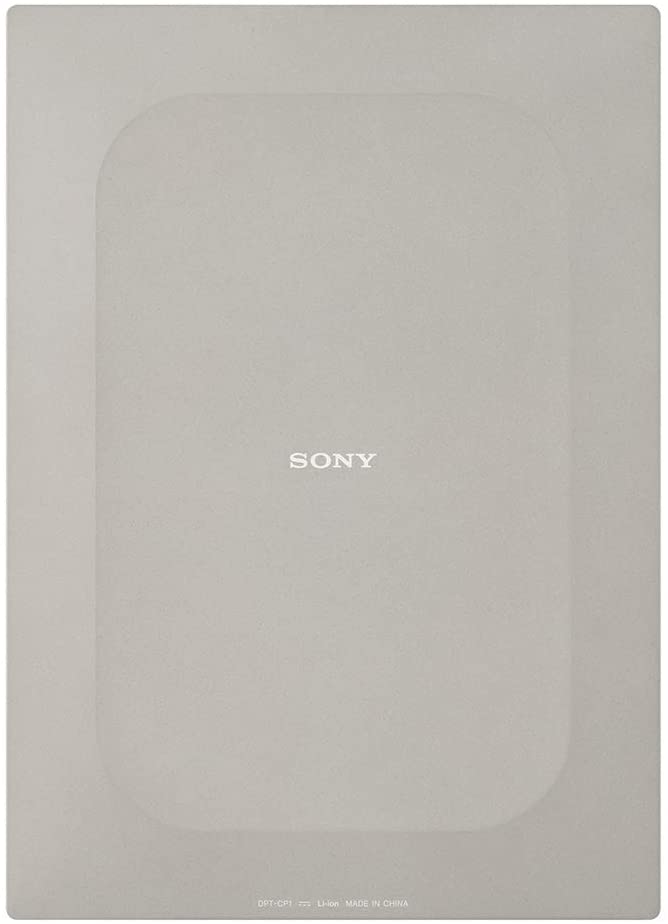

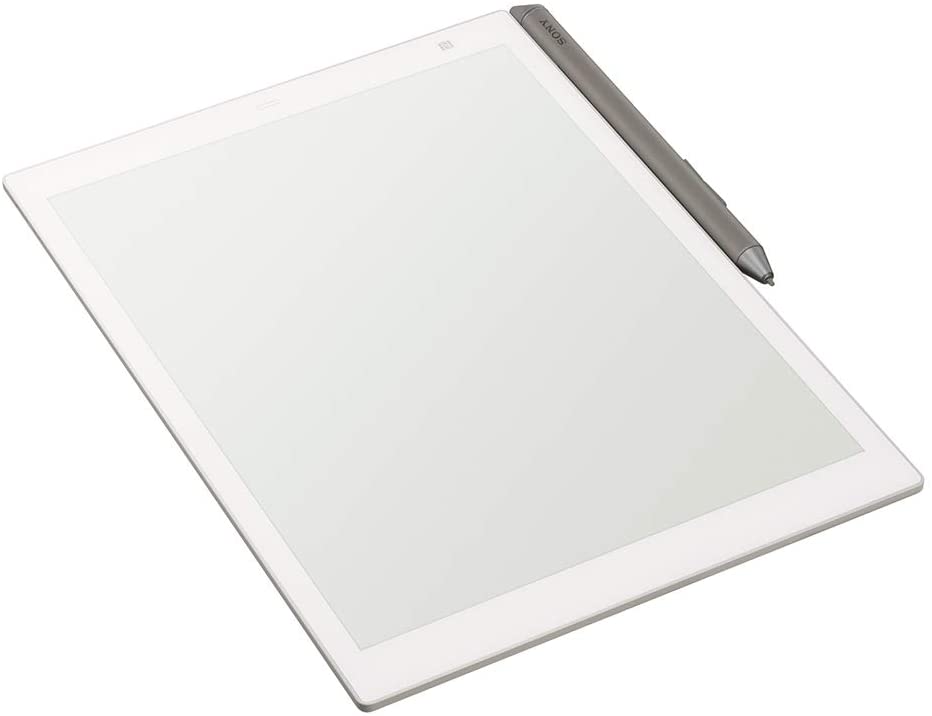

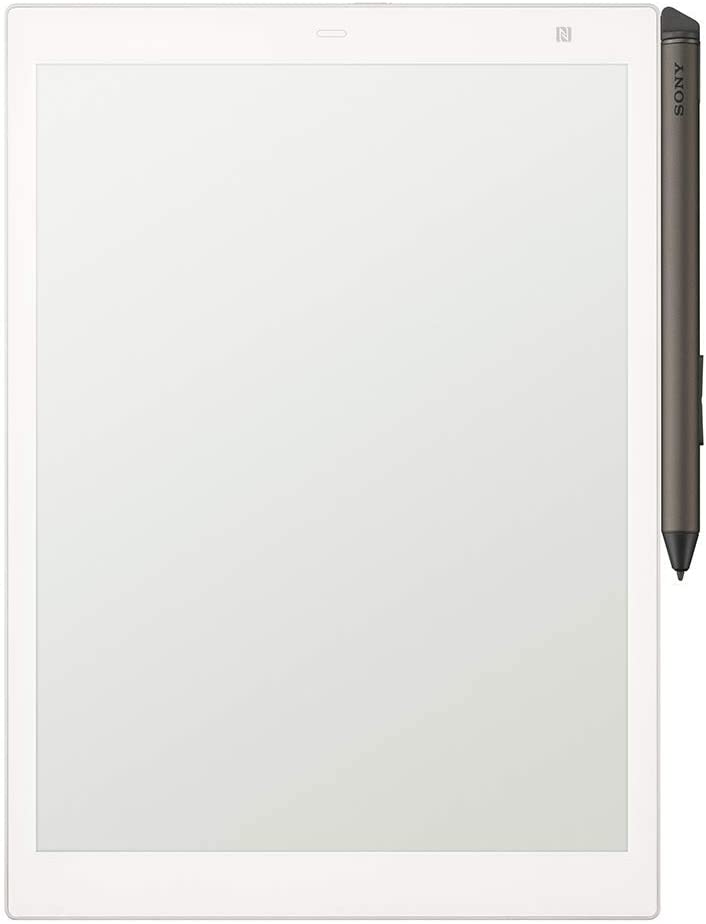

Sony Digital Paper DPT-CP1 10.3
Sony Digital Paper DPT-CP1 10.3
Couldn't load pickup availability
Color: White
Display: E-Ink Carta HD Touchscreen
Screen Size: 10.3 inch
Display Resolution：1872×1404
PPI: 227
WACOM Active Digitizer: Yes
Front Light – No
Color Temperature – No
Processor：Marvell Quad-core
RAM：1GB
Internal Storage：16GB
Physical Page Turn Buttons: No
Micro SD: No
WIFI: Yes
Operating System: Android 5.0 (skinned)
Battery：3100 mAh
Digital Pen：Yes, it recharges
Data Connector：Micro USB
Bluetooth: 4.2
Waterproof: No
Audio: No
Length：174.2 mm
Width：243.5 mm
Thickness：5.9 mm
Weight: 240 g
Introducing the third generation Sony Digital Paper, DPT-CP1. This model features a 10.3 inch screen, so it is lighter and more portable. You can edit PDF files, take notes or draw. This model is available right now to ship worldwide.
| Basic information | ||
|---|---|---|
| Display | 10.3 type flexible electronic paper (resolution 1404 × 1872 dots) mounted, 16 gray scale gray scale, 227 dpi | |
| Touch panel | Capacitive type pen input compatible touch panel | |
| processor | Marvell (R) IAP 140 64-bit Quad-core IoT Applications Processor | |
| Internal memory capacity / usable area | 16 GB / about 11 GB | |
| Number of PDF files that can be saved in internal memory | About 10,000 files (about 1 MB PDF file per file) | |
| interface | Micro USB terminal | |
| Support file format (extension) | PDF (.pdf) * 1 | |
| Digital Paper App Operation Supported OS * 2 * 3 * 4 | Windows 10 Home (32 / 64Bit) Windows 10 Pro (32 / 64Bit) Windows 8.1 (32 / 64Bit) Windows 8.1 Pro (32 / 64Bit) Windows 7 Home Premium (SP1 or later) (32 / 64Bit) Windows 7 Professional (SP1 or later ) Windows 7 Ultimate (SP1 or later) (32/64 bit)macOS 10.13 (High Sierra) macOS 10.12 (Sierra) Mac OS X 10.11 (El Capitan) |
|
| Dital Paper App for mobile Operation supported OS * 2 * 3* 4 | Android 6.0 Android 7.0 Android 8.0 iOS11 (NFC Touch, iPhone 7 or later) |
|
| Wireless LAN | ||
| Communication method | IEEE 802.11a / b / g / n / ac MIMO | |
| Used frequency band | 2.4 GHz band, 5 GHz band | |
| encryption | WPA2-PSK (AES), 802.1x EAP (TLS / PEAP) | |
| Connection method | Wi-Fi Protected Setup (TM) (WPS) / Manual | |
| Wi-Fi authentication | Correspondence | |
| Bluetooth (R) | Bluetooth standard Ver. 4.2 | |
| Power supply | ||
| Rechargeable battery | Built-in lithium ion rechargeable battery | |
| USB charging charging time (approx / hour) | About 5.5 hours | |
| AC adapter Charging charging time (approx / hour) | About 3.5 hours | |
| Battery duration | When Bluetooth (R) function is off: When Wi-Fi function is off ... Maximum length about 3 weeks * 5 * 6 / Wi-Fi function on time ... Maximum length about 1 week * 6 * 7 | |
| Operating and charging recommended temperature | 5 - 35 ℃ | |
| NFC | ||
| Used frequency band / Corresponding standard | 13.56 MHz band / FeliCa (unlock screen), NFC Forum Type 4 Tag (easy connection with Digital Paper App for mobile) | |
| Dimension / mass | ||
| External dimensions (width × height × depth) | About 174.2 × 243.5 × 5.9 mm | |
| Mass (including rechargeable battery) | Approximately 240 g | |
| Main accessories | Stylus pen, USB cable (about 1.5 m), replacement core, core removal, before using (warranty integrated type) | |
| Stylus pen | ||
| Rechargeable battery | Built-in lithium ion rechargeable battery | |
| USB charging charging time (approx / hour) | About 3 hours | |
| AC adapter Charging charging time (approx / hour) | About 3 hours | |
| Battery duration | About 1 month | |
